Description
Capacity 325 to 525 liters – Loads up to 1200 kgQualities

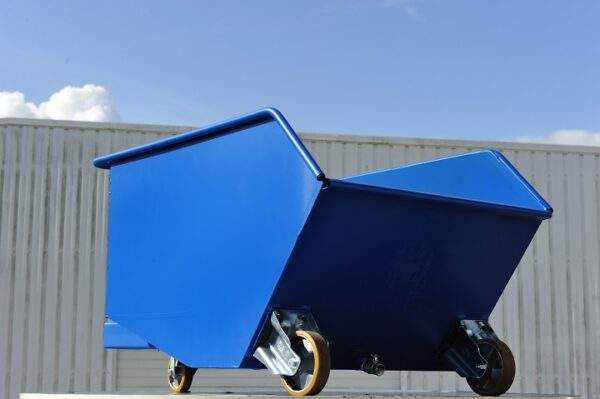

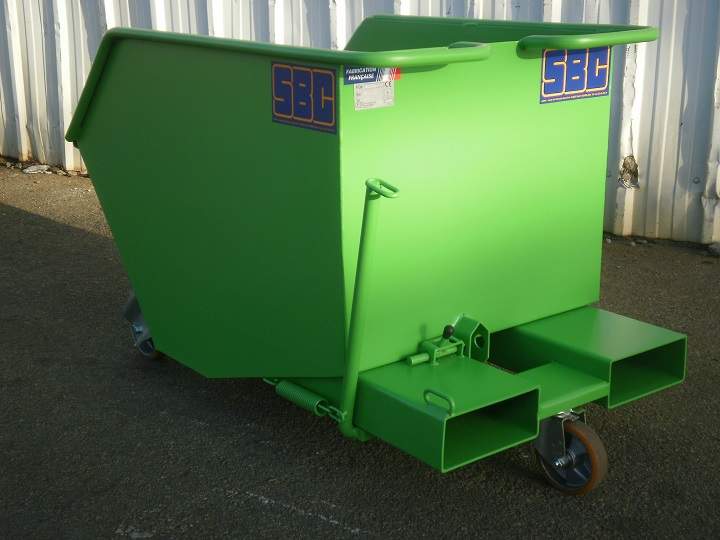

- Compact low tipping bucket with spout, ideal for workstations with reduced height and space requirements.
workstations. - Two triggers as standard :
- automatic by contact.
- by manual lever.
- End of stroke cushioned by rubber stops.
- Safety latch prevents accidental release.
- Safety link welded to the frame.
- Maintenance-free equipment.
Features
- Mechanically welded tank in thick sheet metal. 3 mm.
- Tank bottom sealed over 100 mm.
- Continuous, reinforced outer weld at external corners.
- Tank edges reinforced with Ø 21 mm tube.
- Thick gripping sleeves 5 mm.
- Articulation on Ø 23 mm axle.
- Protective rings Ø 10 mm welded to front panel.
- Aluminium wheels with polyurethane tyres and ball bearings.
- Braked rear swivel wheel.

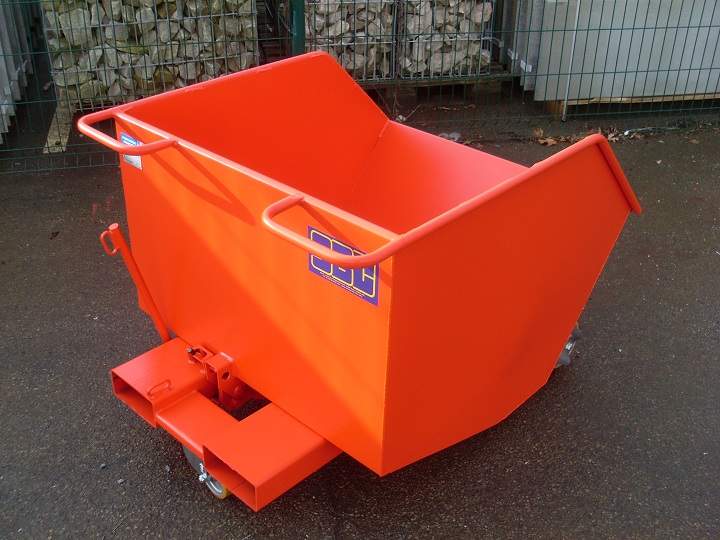

- Paint finish: choice of 10 shades, see page 64.
Options

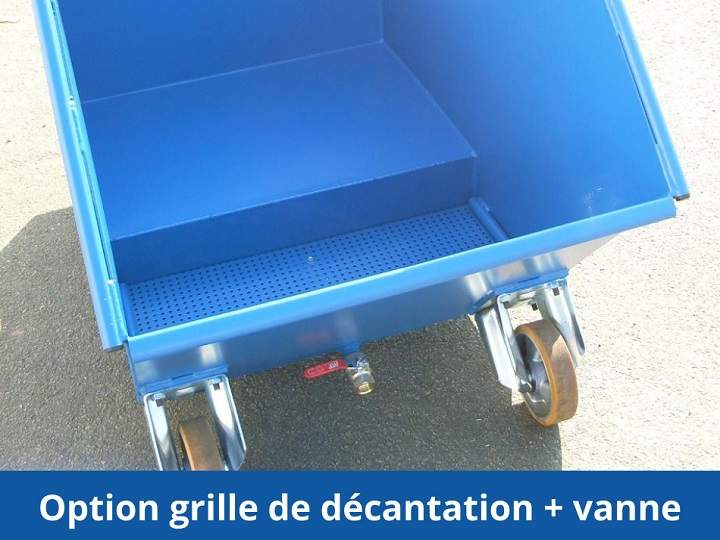

- Feet, settling grid + 1/4-turn valve, lifting lugs, special sleeves, markings, cover, hot-dip galvanized, stainless steel.
- Options are detailed on pages 43 to 49 and finishes on pages 62 to 64.
- Special manufacture on request.
Click here to see a video of our low tipping body.

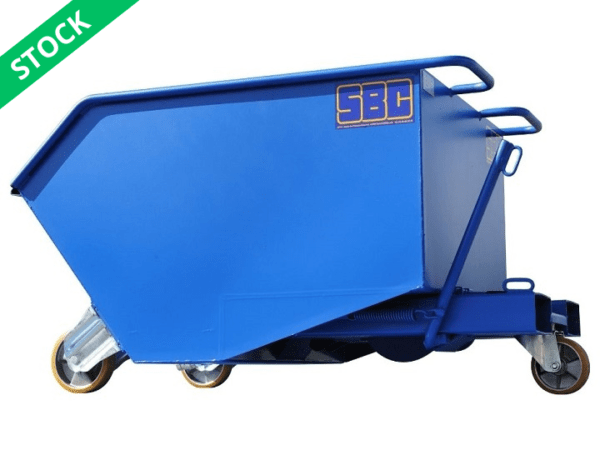

* Tippers in stock for the following volumes: 325L | 400L | 460L | 525L (limited stock, contact us for any request!).
