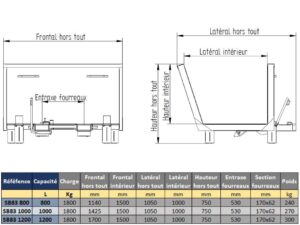

Description
Front 1140 to 1700 mm.
Load < 1800 kg
Qualities
- Reinforced skip with open sides for long waste.
- Two triggers as standard :
- automatic by contact.
- by manual lever.
- End of stroke cushioned by rubber stops.
- Safety latch prevents accidental release.
- Safety link welded to frame.
- Removable feet as standard.
- Maintenance-free equipment.
Features
- Mechanically welded front and rear plate in th.
3 mm and 80×40 mm tubes. - Thick bottom plate
4 mm reinforced by 4 plates on field th.
8 mm. - Continuous, reinforced outer weld at inner corners.
- Bowl edges reinforced by double folding.
- Thick gripping sleeves 5 mm with reinforced belt entry th.
8 mm belt. - Articulation on Ø 23 mm axle.
- Paint finish: choice of 10 shades.
Options
- Wheels, lifting lugs, special sheaths, markings, hot-dip galvanizing, stainless steel.
- For other specific requirements, please contact us
