Description

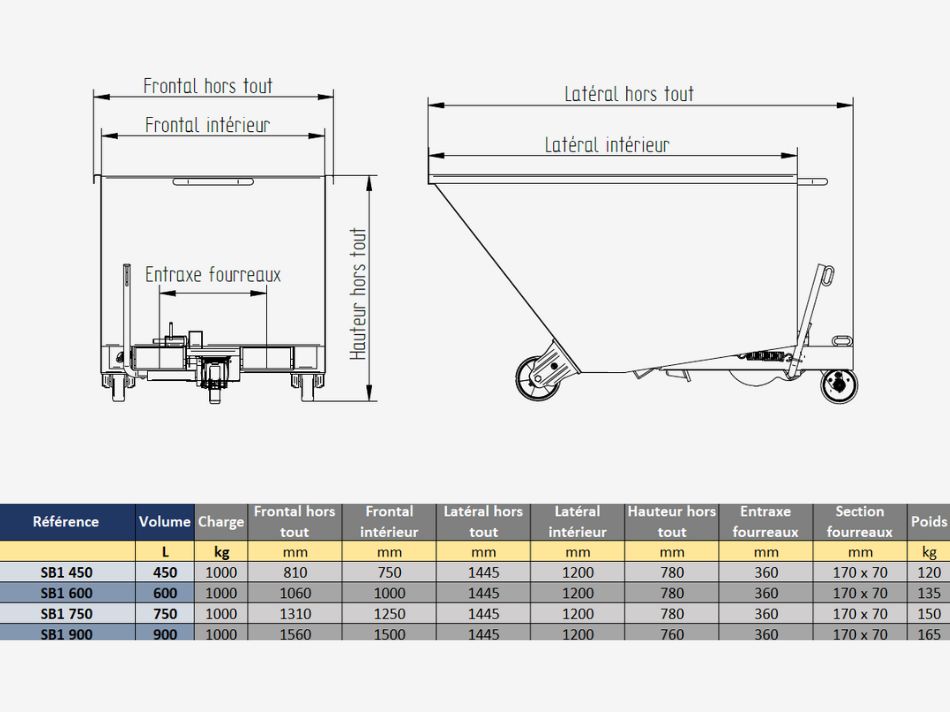

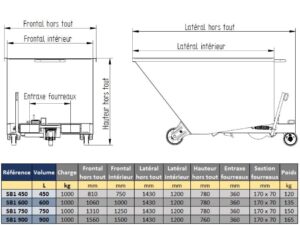

Capacity 450 to 900 liters – Loads up to 1000 kg Qualities
- Low-cost tipping bucket for workstations with reduced height and space requirements.
- Two triggers as standard :
- automatic by contact.
- by manual lever.
- automatic by contact.
- End of stroke cushioned by rubber stop.
- Anti-tilt safety catch during handling.
- Safety link welded to the frame.
- Maintenance-free equipment.
Features
- Mechanically welded tank in thick sheet metal. 3 mm.
- Bowl edges reinforced by double folding.
- Thick gripping sleeves 5 mm.
- Articulation on Ø 23 mm axle.
- Aluminium wheels with polyurethane tyres and ball bearings.
- Braked rear swivel wheel.
- Paint finish: choice of 10 shades.
Options

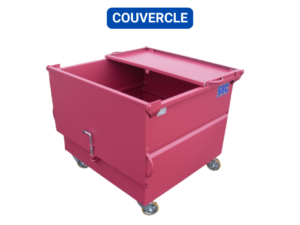

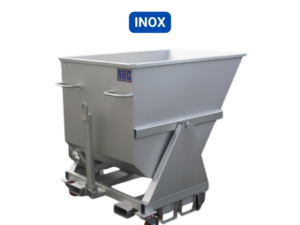

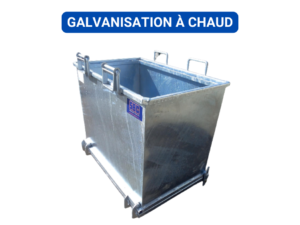

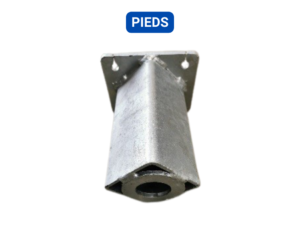

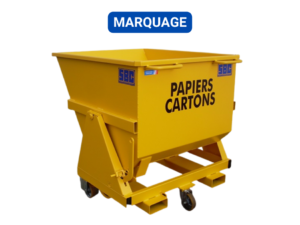

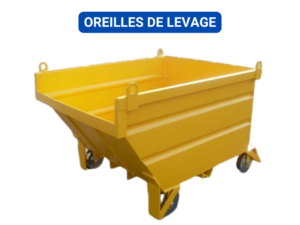

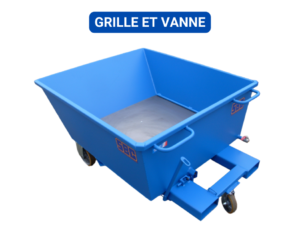

- Feet, settling grid + 1/4-turn valve, cover, lifting lugs, special sleeves, markings, hot-dip galvanizing, stainless steel.

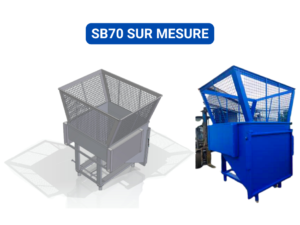

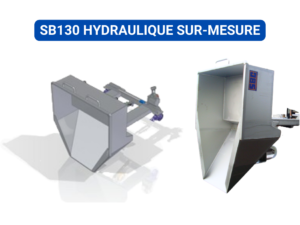

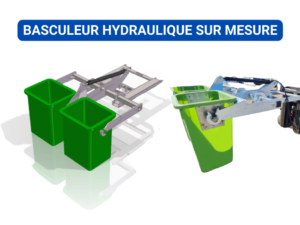

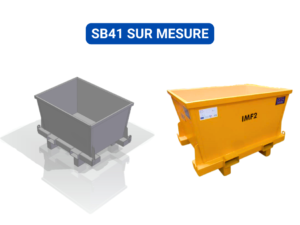

- Special manufacture on request.
Click here to see a video of our low-cost tipper. Painted tippers in stock for the following volumes: 450L | 600L | 750L | 900L (limited stock, contact us for any request!)
