Description

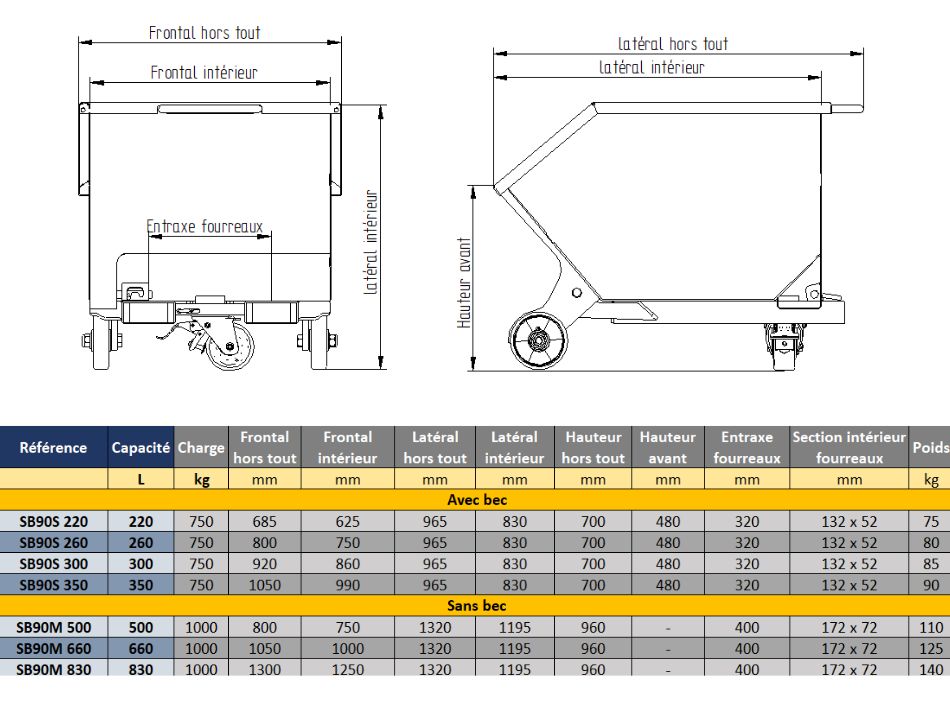

Capacity 220 to 830 liters – Loads up to 1000 kg
Qualities :
- Extremely compact, low-slung mini tipper with progressive emptying and tipping.
- Forklift emptying by pushing against the box (exclusive system – SBC registered design).
- Safety latch prevents accidental tilting.
- Maintenance-free equipment.
Features
- Mechanically welded tank in thick sheet metal. 3 mm.
- Thick gripping sleeves 5 mm.
- Continuous, reinforced outer weld at inner corners.
- Tank edges reinforced with 30×30 mm double ply.
- Extended wheel flanges on front (reinforcement and paint protection).
- Aluminium wheels with polyurethane tyres and ball bearings.
- Rear swivel wheel with brake.
- Paint finish: choice of 10 shades.
Options
- Settling grid + 1/4-turn valve, markings, hot-dip galvanized, stainless steel.
- For other specific requirements, please contact us.
Click here to see a video of our Mini Low Tipper.
* Tippers in stock for the following volumes: 220L | 260L | 300L | 350L | 500L | 600L | (limited stock, please contact us for any request).
